DW45 4000A Electrical ACB Air Circuit Breaker With Competitive Price

FOB Reference Price:Get Latest Price
  • 5 - 9 Pieces
    $1,590.00
  • 10 - 19 Pieces
    $1,585.00
  • >=20 Pieces
    $1,580.00
Lead Time:
Quantity(Pieces) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 7 10 15 Negotiable
Samples:
$1,600.00 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AISO/OEM
Model Number:
DW45-4000/3P
Type:
Air, Fixed
Poles Number:
3
Product:
Vacuum circuit switch
Product name:
4000A air circuit breaker
Rated Voltage:
400V/690V
Rated current:
4000A
Rated frequency:
50Hz
Material:
Copper
Certificate:
ISO9001-2015
Customized:
Accept special order
Port:
Ningbo/Shanghai
Supply Ability
Supply Ability:
100 Piece/Pieces per Month air circuit breaker 4000a air circuit breaker circuit breake
Packaging & Delivery
Packaging Details
Standard export wooden case packing
Port
Ningbo or Shanghai
Lead Time :
Quantity(Pieces) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 7 10 15 To be negotiated
Product Description

air circuit breaker 4000a  air circuit breaker    circuit breaker

Quick Reply     Professional Consultation           Continued Cooperation

Application of Intelligent Air Circuit Breaker(ACB)

DW45 series universal circuit breaker(hereinafter referred to as breaker)is suitable for the circuit of AC 50Hz with rated voltage 400V, 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuits and power-supply equipment from overload, under-voltage, short-circuit and single-phase earthing. with intelligentized and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines(for 690V) and modern high-buildings, especially for the distribution system of intelligentized building. This breaker conforms to IEC60947-2 and GB14048.2. The whole series have past CCC certifi cation.



Feature of Intelligent Air Circuit Breaker(ACB)

1. Rated AC current: 630A-6300A

2. Short-circuit breaking capacity: 80KA-120KA

3. Rated Voltage: under AC690V

4. Two Types: draw-out type and fixed type

5. Equipped with many types of intelligent controllers, of different functions.

6. Both the 3 Pole and 4 Pole air circuit breakers are available.

7. Standards: IEC60947-2, GB14048.2

 Categories of Intelligent Air Circuit Breaker(ACB)

1. Our air circuit breaker can be of two installation types: fixed type and draw-out type

2. Number of poles: 3 pole and 4 pole

3. Operation type: manual operation, auto operation

4. Trip types: Intelligent controller, under voltage instant ( or time delay type) trip and shunt trip

5. Intelligent controller categories: L type(basic type), M type( Standard type), and H type ( communication type)

 Main Technical Parameters

Frame size

rated

current

inm(A)

Rated

current

InA

Rated

insulation

voltage(v)

Rated limit

short-circuit breaking

capacity

lcu(kA)

Rated operating

short-circuit breaking

capacity

lcu(kA)

Rated

short-time

withstand

current

lcw

kA(1s)

400v690v400v690v
20006306908050504050
800
1000
1250
1600
2000
3200200010065655065
2500
4000320010065655065/80
3600
4000
6300400012080807085/100
5000
6300

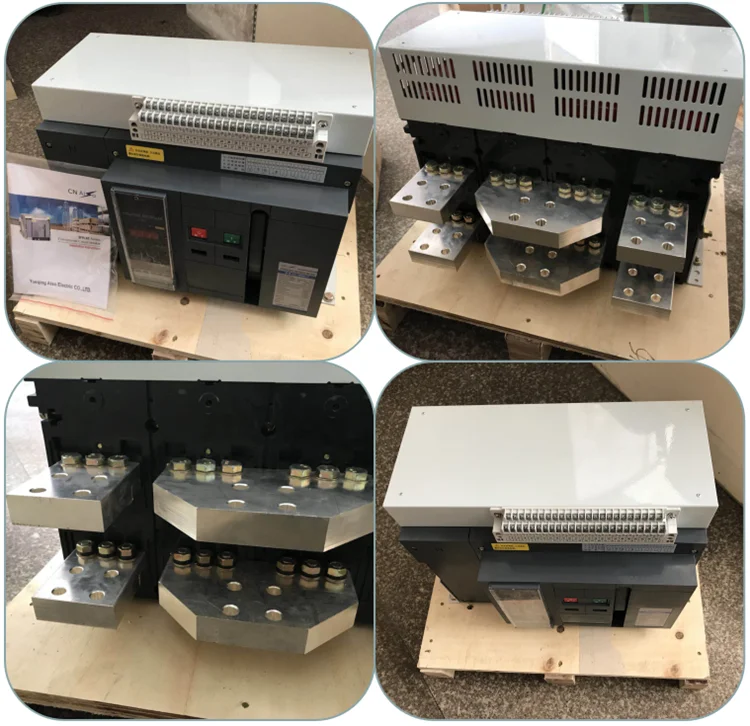

 Product picture details  (Real product picture, unprocessed)
