Yueqing Factory Price Resin Indoor Type Voltage Measuring Transformer

FOB Reference Price:Get Latest Price
  • 3 - 8 Pieces
    $240.00
  • 9 - 14 Pieces
    $235.00
  • >=15 Pieces
    $230.00
Lead Time:
Quantity(Pieces) 1 - 3 4 - 9 10 - 15 >15
Est. Time(days) 7 10 15 Negotiable
Customization:
Customized logo (Min. Order: 3 Pieces)
Customized packaging (Min. Order: 3 Pieces)

More

Graphic customization (Min. Order: 3 Pieces) Less
Samples:
$250.00 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AISO/OEM
Model Number:
JDZC-6.10
Usage:
Measuring
Phase:
Single
Coil Structure:
Toroidal
Coil Number:
Autotransformer
Product:
Voltage measuring transformers
Type:
JDZC-6.10
Rated voltage:
6/10kV
Output Voltage:
220V
Ultimateoutput(VA):
600-1000VA
Rated Frequency:
50/60Hz
Application:
low Voltage
Operating Temperature:
-30~40 ℃
Capacitor Certification:
ISO9001
Material:
Copper
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month transformer transformer price voltage measuring transformers
Packaging & Delivery
Packaging Details
Export Wooden Packing
Port
Ningbo or Shanghai
Lead Time :
Quantity(Pieces) 1 - 3 4 - 9 10 - 15 >15
Est. Time(days) 7 10 15 To be negotiated
Product Description

Yueqing Factory Price Resin Indoor Type Voltage Measuring Transformer

 Quick Reply     Professional Consultation           Continued Cooperation

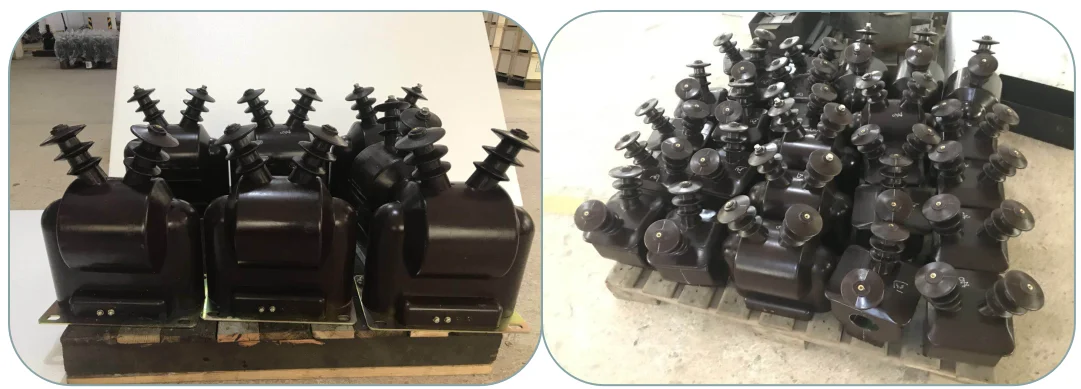

 JDZC-6.10 Series voltage transformer



Summary
JDZC type voltage transformer is the indoor device of epoxy resin cast insulation, applied to electric measurement and electric protection in the electric system of rated frequency 50Hz and rated voltage 6kV, 10Kv.

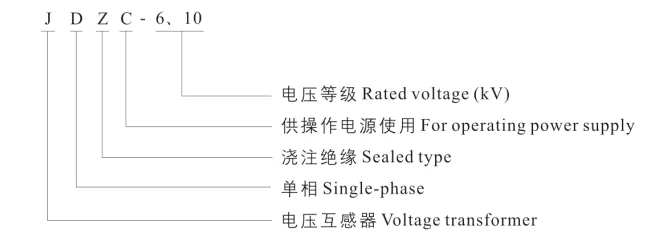

Type designation

Structure

This transformer is the type of full instulation, its primary winding two technicals that are checked according to full insulation level. distributed on both sieds of casting body top. It is mainly made up of three parts: iron core, secondary winding and primary winding which are all encapsulated in the epoxy resin casting body, featured with stable electric performance and perfect damp proof property.

Operating conditions

1 Equipment category :  Indoor

2 Environmental temperature:Max temperature +40 ℃/ Min temperature -5℃

3 Air condition: There shall not be stains and corrosive or explosive mediums that seriously

affect the insulation of transformer in the air

Technical parameter

Type Rated voltage ratio(v)Rated secondary output(vA)Accuracy classes combinationRated insulation level(kV)
1a1b(100v)2a2b(220v)
JDZC-1010000/100/220307000.5/37.2/32/60
60000/100/22050800/100012/42/75
802000/3000

Outline and installation dimension


Our Services

Our Services



1.We can make the products as different’s special require.



2.Flexible lead time



3.We can offer products at different prices



4.We have our own workflow (AISO process)



5.Any way, any time, your problems will be timely reply



FAQ



"Do you have a catalogue? Can you send me the catalogue to have a check of all your products?"

Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.



"Whether can produce as my require?"

"Yes,we can make the products as different’s special require."



"How long the product warranty?"

"Normally, the warranty for the product is 18 months , warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem."



"What kind of payment do you accept ? Can I pay RMB ?"

"We accept T/T(Wire transfer),Western Union and Paypal. And you can pay money In RMB. No problem."



"Any requirements or question,welcome to ""Send"" us an e-mail  Now!!!



It's our great honor to do services for you! "
