ISO9001 Standard FLN(R)36 Type SF6 Gas Load Breaker Switch

FOB Reference Price:Get Latest Price
  • 5 - 9 Pieces
    $430.00
  • 10 - 19 Pieces
    $425.00
  • >=20 Pieces
    $420.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AISO/OEM
Model Number:
FLN36
Max. Current:
630A/125A
Max. Voltage:
12KV
Type:
SF6 Load Break Switch
Rated Voltage:
12KV
Rated frequency:
50Hz
Rated current:
630A/125A
Color:
Red
Packaging:
Export wooden case packing
Product name:
Load Break Switch
Sample:
Accept
Port:
Ningbo/Shanghai
Packing:
Export Wooden Packing
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Switch Load Break Switch SF6 switch
Packaging & Delivery
Packaging Details
Standard export wooden case packing
Port
Ningbo or Shanghai
Lead Time :
7Days
Product Description

Quick Reply     Professional Consultation           Continued Cooperation

Switch  Load Break Switch  SF6 switch

Overview

FLN type indoor high voltage AC load breaker switch refer to international new technology and develop the switching equipment in according to the relevant standards in China’s electric power system. Its performance indicators in full compliance IEC420,694,129 and national standards GB3804-2004“3.6kV-0.5kV high voltage AC load breaker switch”GB1985-2004“high-voltage AC isolation switch and earthing switch”,GB/ T11022-1999“common technical requirements for high-voltage switchgear and control equipment standards“, This is the main switching element RMU. The load breaker switch is a collection multifunctional medium voltage switchgear of gates,sub-gate, earthing. In a fully sealed with strengthen the structure of the epoxy resin housing to filled with SF6 gas,0.05MPa , with the minimum parts to achieve the above three functions,to ensure product quality, improve reliability, maintenance-free. It can be safely run for more than 20 years in normal conditions.

Basic Functions And Features

1.Load breaker switch adapts double fracture, rotary movable contact structure, with the following three kinds of operating states: Closing,opening,earthing.

2.Using SF6 gas as an arc extinguishing and insulating medium, the main circuit seals by the upper and lower housing pouring epoxy resin, the conductive function is unaffected by external influences.

3.Good safety performance. If internal arcing occurs, the housing has an internal structure weak point, it will be rushed to open, followed by the cabinet above the shutter release arc red open air overpressure stream-oriented outside the cabinet, ensure that the switch

cabinet security checks.

4.Load breaker switch sets gates, opening, earthing switch three at one, filled with SF6 gas encapsulated in epoxy resin housing, three-position interlock,compact structure,high security and reliability.

5.Small size, light weight, maintenance-free, easy and safe to operate.



Technical data
Technical NameUnitModel
BRFLN36-12/630

BRFLN36-12D/125-50

switch-fuse combinations

1    Rated voltageKV12
2    Rated FrequencyHz50
3    Rated currentAmp630125
4

    Rated Insulation

Level

L min power-frequency

withstand voltage (KV)

4248

Lighting impulse

withstand voltage(Peak) KV

7585
5   Rated thermal current (2S)KA20
6   Rated dynamic currentKA50
7    Rated short-circuit on-off currentKA25
8   Rated closed loop breaking current  A630
9Rated active on-load breaking currentA630
10Rated cable charger breaking currentA10
11Rated short-circuit breaking current(peak)KA 50
12Rated transfer currentA1700
13Fuse type Sfldj-12
14Impact output energyJ1+0.5
15

   Rated thermal current(2S)for

grounding switch

KA202
16

  Rated dynamic current (peak)for

grounding switch

KA50

Maximum torque

operated manually

17

   Rated short-circuit on-off current for

grounding switch

KA50

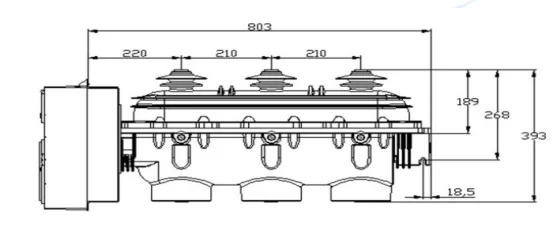

Outline and installation size
(You can send us enquiry for more details)
