FZN25 high voltage indoor vacuum load switch

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $800.00
  • 10 - 19 Pieces
    $790.00
  • >=20 Pieces
    $780.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AISO/OEM
Model Number:
FZN25
Max. Current:
2000A
Max. Voltage:
12KV
Type:
High Voltage Load Break Switch
Rated Voltage:
12KV
Rated frequency:
50Hz
Rated current:
630A/125A
Color:
Red
Packaging:
Export wooden case packing
Phase:
Three
Rated cable:
10A
Product name:
12kV Load Break Switch
Material:
Copper
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export wooden case packing
Port
Ningbo or Shanghai
Lead Time :
7Days
Product Description

Overview:                                                                                                                                                 FZRN25-12D FZN25-12D FZN25-12 Indoor high voltage vacuum load switch & FZRN25-12D FZN25-12D FZN25-12-fuse combination of three-phase AC 50HZ, 12KV power distribution system control and protection devices. Products are oil-free, non-toxic, non-flammable and explosive hazards, widely used in miners and urban buildings and other places.  The latter of the transformer and other electrical equipment protection than the circuit breaker more reliable, especially for ring network, dual-radiation power supply unit and box-type substation.

Technical data
#ItemUnitDate
LXFZN25-12(D)/2000-31.5 vacuum load switch +fuse
1Rated voltageKV12
2Rated currentA630/125
3Rated frequencyHZ50
41min power frequency withstand voltageground& phaseKV42
isolation fractureKV48
vacuum interrupterKV42
5Lightning impulse withstand voltageground& phaseKV75
isolation fractureKV85
vacuum interrupterKV75
6Breaking the no-load transformerKVA2500
7Rated cable charging currentA10
8Rated short circuit breaking current (expected))KA31.5
9Rated breaking transfer currentA3150
10Interphase center distancemm210+/-2
11Vacuum interrupter contact open distancemm8+/-1
12Synchronicityms≤3
13Average closing speedm/s0.6+/-0.2
14Average opening speedm/s1.0+/-0.2
15Mechanical lifeTimes10000

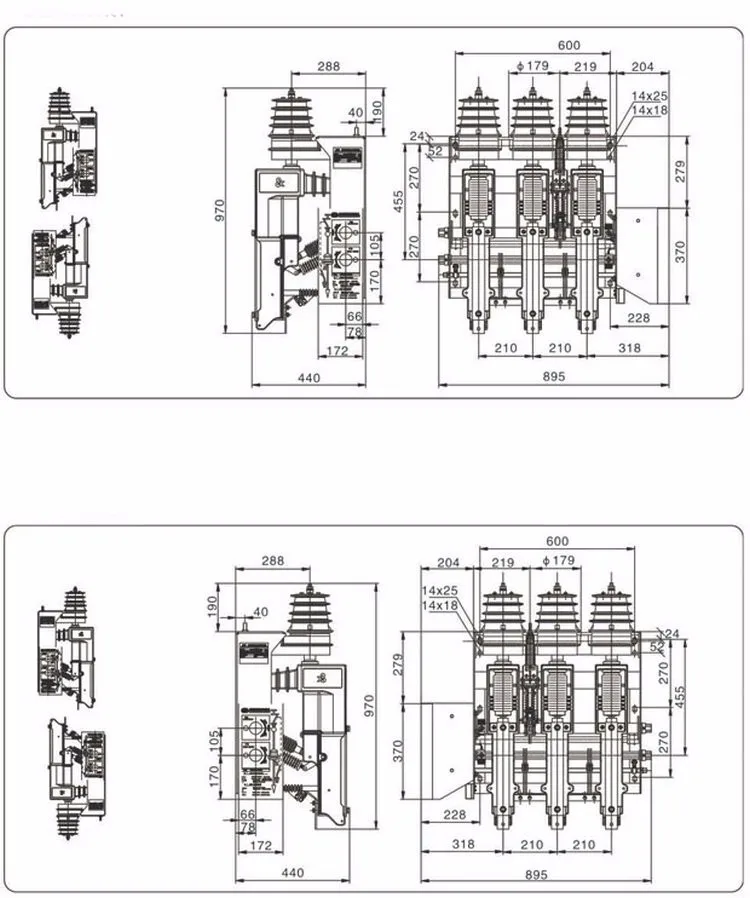

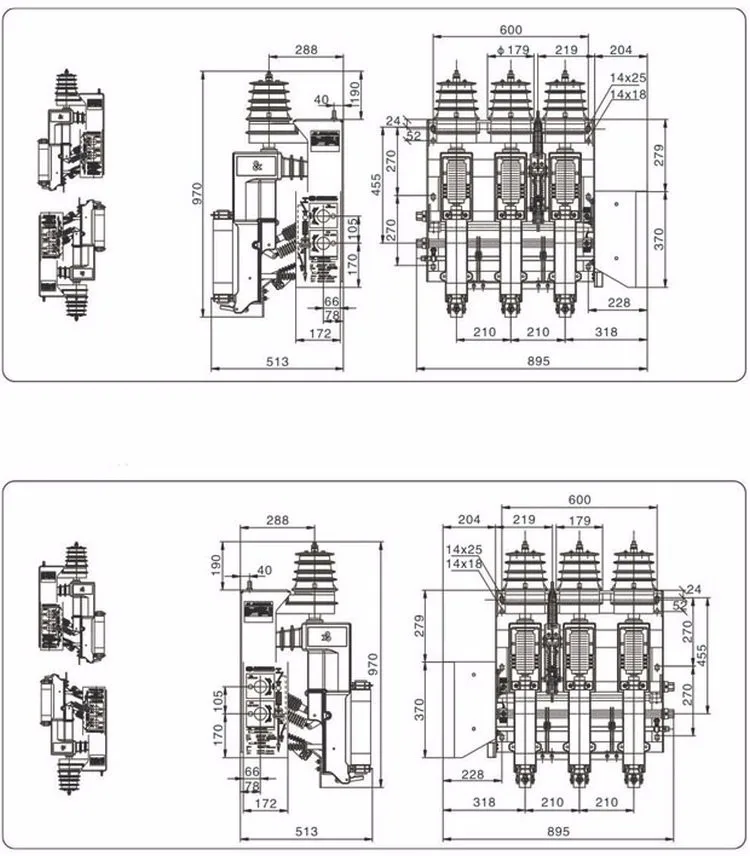

 Outline and installation size
