Factory Price LMZ1-0.66 Low Voltage Current Transformer With Good Quality

FOB Reference Price:Get Latest Price
  • 30 - 89 Pieces
    $6.30
  • 90 - 199 Pieces
    $5.80
  • >=200 Pieces
    $5.50
Lead Time:
Quantity(Pieces) 1 - 30 31 - 90 91 - 200 >200
Est. Time(days) 7 10 15 Negotiable
Customization:
Customized logo (Min. Order: 30 Pieces)
Customized packaging (Min. Order: 30 Pieces)

More

Graphic customization (Min. Order: 30 Pieces) Less
Samples:
$7.00 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AISO/OEM
Model Number:
LMZ1(2)-0.66
Usage:
Power
Phase:
Single
Coil Structure:
Toroidal
Coil Number:
Autotransformer
Product:
low current transformer
Rated Voltage:
0.66kV
Rated secondary current:
5A
Rated frequency:
50Hz/60Hz
Application:
Low Voltage
Type:
Low voltage transformer
Seport:
Ningbo/Shanghai
Standard:
IEC60076
Certification:
ISO9001
Color:
Red
Supply Ability
Supply Ability:
500 Piece/Pieces per Month transformer current transformer low voltage transformer
Packaging & Delivery
Packaging Details
Carton Packaging
Port
Ningbo or Shanghai
Lead Time :
Quantity(Pieces) 1 - 30 31 - 90 91 - 200 >200
Est. Time(days) 7 10 15 To be negotiated
Product Description

Factory Price LMZ1-0.66 Low Voltage Current Transformer With Good Quality

 LMZ1/LMZ2-0.66 Current Transformer



 Summary

LMZ1(2)-0.66 type current transformer insulation products for resin casting, suitable for rated frequency 50Hz or 60Hz, as the current, rated voltage 0.66KV and below voltage distribution lines in power, power measurement and relay protection(indoor device).

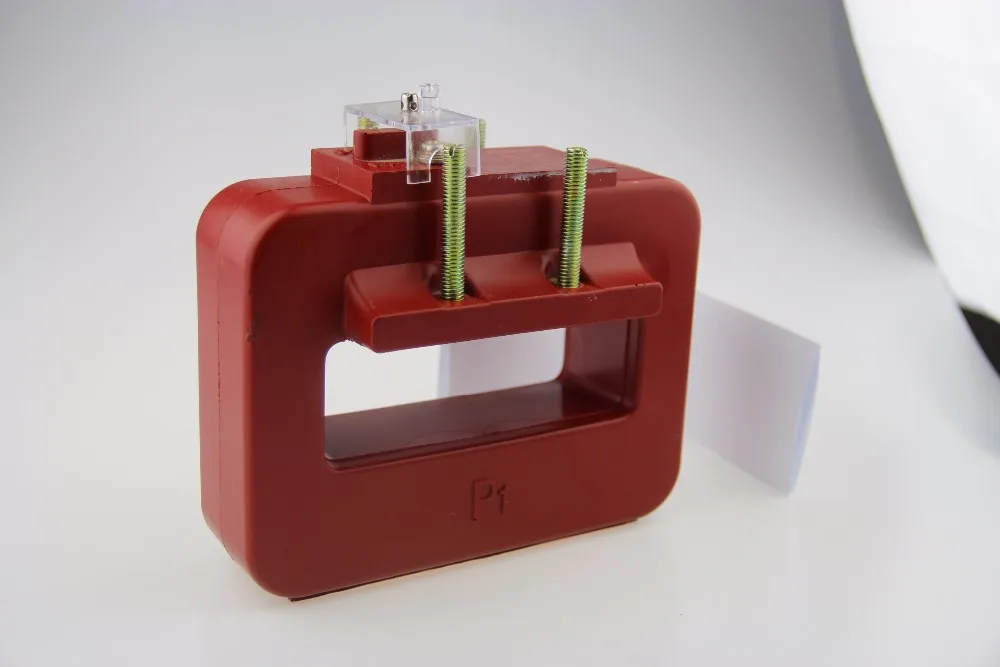

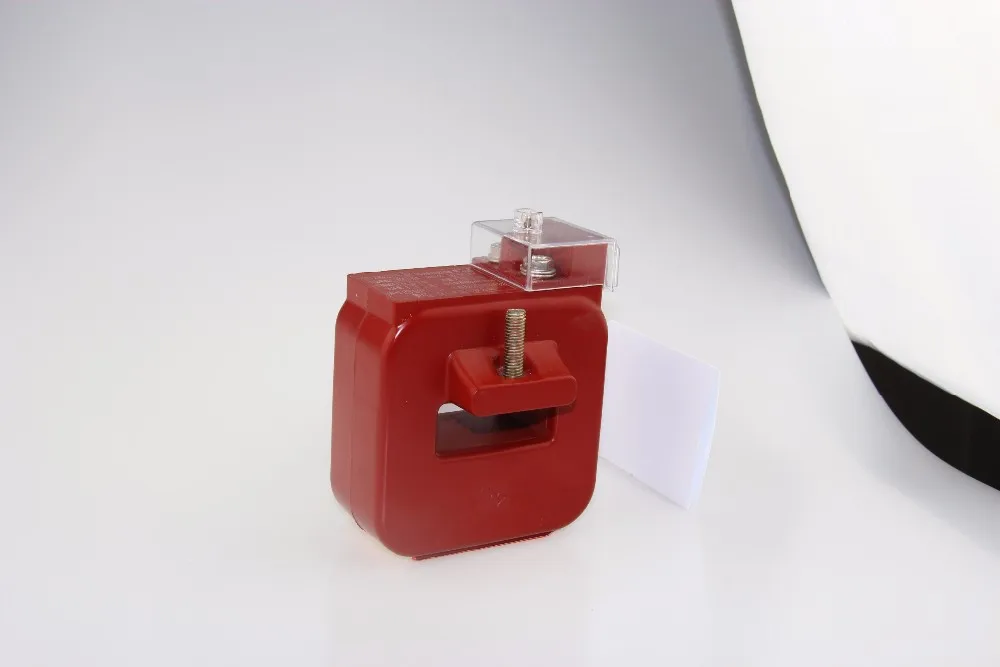

Structural feature

 This type of transformer is busbar type casing insulation, high-quality toroidal core(high current ratio of oval) have large rated output, accuracy advantages, annealed core, the secondary coil is wound on the radially uniform core, head welded copper nut conventient wiring. The transformer has a compact, easy to install, taking advantages of small size, making the device suitable for converting current and low voltage cabinet or low voltage appliance.

Main Technical Parameters
TypeRated primary current(A)Rated secondary current(A)Rated output (VA) Class0.5
LMZ1-0.66; LMZ2-0.66150, 200, 315, 40055
630, 80010
1000, 1250, 160015
2000, 2500, 315020
400030

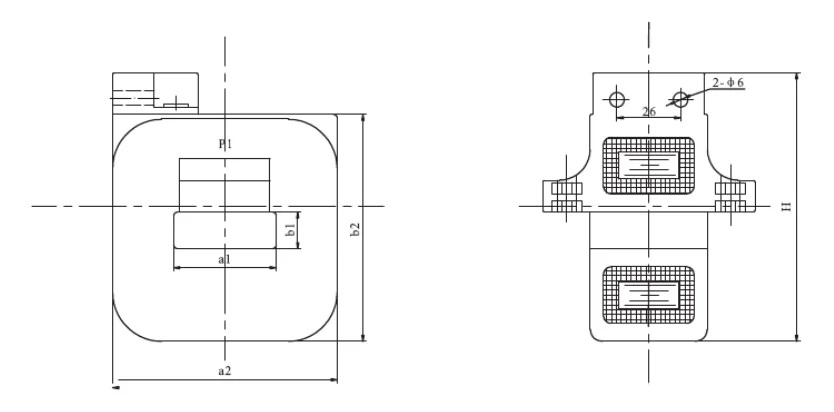

Outline and installation dimension



TypeSpecificationa1(mm)a2(mm)b1(mm)b2(mm)H(mm)c(mm)e(mm)f(mm)
LMZ2-0.66150-200/532941593113486989
250-400/542921593113506787
500-600/55210318109122506787
750/56212720123136506787
800/58213722128141506787
1000-1500/510215725131144506787
2000-4000/514220735141154506787
