Good Reviews MV 11KV/12KV Indoor Vacuum Circuit Breaker

FOB Reference Price:Get Latest Price
  • 5 - 19 Pieces
    $590.00
  • 20 - 29 Pieces
    $570.00
  • >=30 Pieces
    $550.00
Lead Time:
Quantity(Pieces) 1 - 20 21 - 30 >30
Est. Time(days) 7 10 Negotiable
Customization:
Customized logo (Min. Order: 5 Pieces)
Customized packaging (Min. Order: 5 Pieces)

More

Graphic customization (Min. Order: 5 Pieces) Less
Samples - $610.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AISO/OEM
Model Number:
VS1-12
Type:
High Voltage
Poles Number:
3
Product:
VS1-12 vacuum circuit breaker
Product name:
Vacuum circuit breaker
Rated Voltage:
11KV/12KV
Rated current:
630-3150A
Rated frequency:
50Hz
Rated short circuit duration:
4S
Standard:
ISO9001
Mechanical life:
10000Times
Weight:
About140KGS
Customized:
Accept special order
Supply Ability
Supply Ability:
100 Piece/Pieces per Month vacuum circuit break/circuit breaker price/vacuum circuit breake
Packaging & Delivery
Packaging Details
Standard export wooden case packing
Port
Ningbo or Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 20 21 - 30 >30
Est. Time(days) 7 10 To be negotiated
Product Description

Factory p



MV Indoor Vacuum Circuit Breaker

11-12kV 630A-3150A Fixed Type VCB

rice better brand 11KV/12KV indoor vacuum circuit breaker

VS1-12 type indoor high voltage vacuum circuit breaker, three-phase AC 50Hz, rated voltage for indoor switchgear 12KV power system, protection of power equipment enterprises. As a condition of power equipment and control unit. The frequent operation is suitable for requirements in the rated working current, or multiple breaking short circuit current.

Advantages

Simple structure

Adapt ultra low resistance type vacuum interrupter

Adapt optimization and modular spring operating mechanism

Suitable for occasions with frequent operation

Free maintenance and long service life

High reliable performance

Environmental Conditions

Ambient temperature:40 °C to +40 °C

Altitude: ≤ 1000m.

Relative humidity:≤  95%


Main Technical Parameters
ItemDescriptionUnitData
1Rated voltageKV12/11
2Max. voltageKV12/11
3Rated currentA630/1250/1600/2000/2500/3150
4Rated break current on shortingKA31.5/40/50
5Rated short circuit making currentKA80/100/125
6Rated peak withstand currentKA80/100/125
74S Rated withstand currentKA31.5/40/50
8Rated insulation levelPower frequency voltage(when losing a circuit)KVDreaker 48
Impulse withstand voltage(when losing a circuit)Dreaker 84
9Rated operating sequence OC-0.3s-CO-180S-CO
10Mechanical lifeTimes10000
11Open circuit times of rated short dropout currentTimes50
12Rated close brake voltage of operating machnieV110,220
13Rated break brake voltage of operating machnieV110,220

Note:Please contact the factory to confirm the latest parameters

Outline and installation dimension



Rated current(A)63012501600
Rated short-time withstand current(kA)20,25,31.525,31.5,4031.5,40
Interphase distance(mm)210±1.5

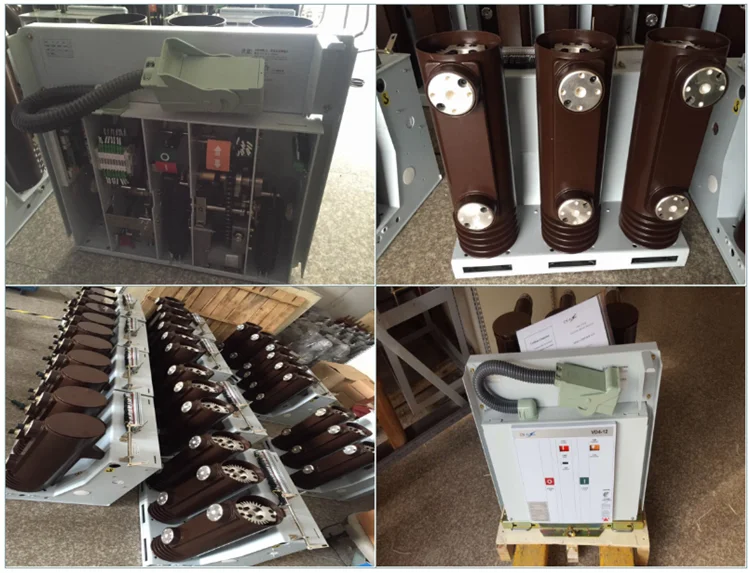

Product picture details  (Real product picture, unprocessed)
Why CNAISO

Related Products

Our Services

Our Services



1.We can make the products as different’s special require.



2.Flexible lead time



3.We can offer products at different prices



4.We have our own workflow (AISO process)



5.Any way, any time, your problems will be timely reply



FAQ



"Do you have a catalogue? Can you send me the catalogue to have a check of all your products?"

Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.



"Whether can produce as my require?"

"Yes,we can make the products as different’s special require."



"How long the product warranty?"

"Normally, the warranty for the product is 18 months , warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem."



"What kind of payment do you accept ? Can I pay RMB ?"

"We accept T/T(Wire transfer),Western Union and Paypal. And you can pay money In RMB. No problem."



"Any requirements or question,welcome to ""Send"" us an e-mail  Now!!!



It's our great honor to do services for you! "
