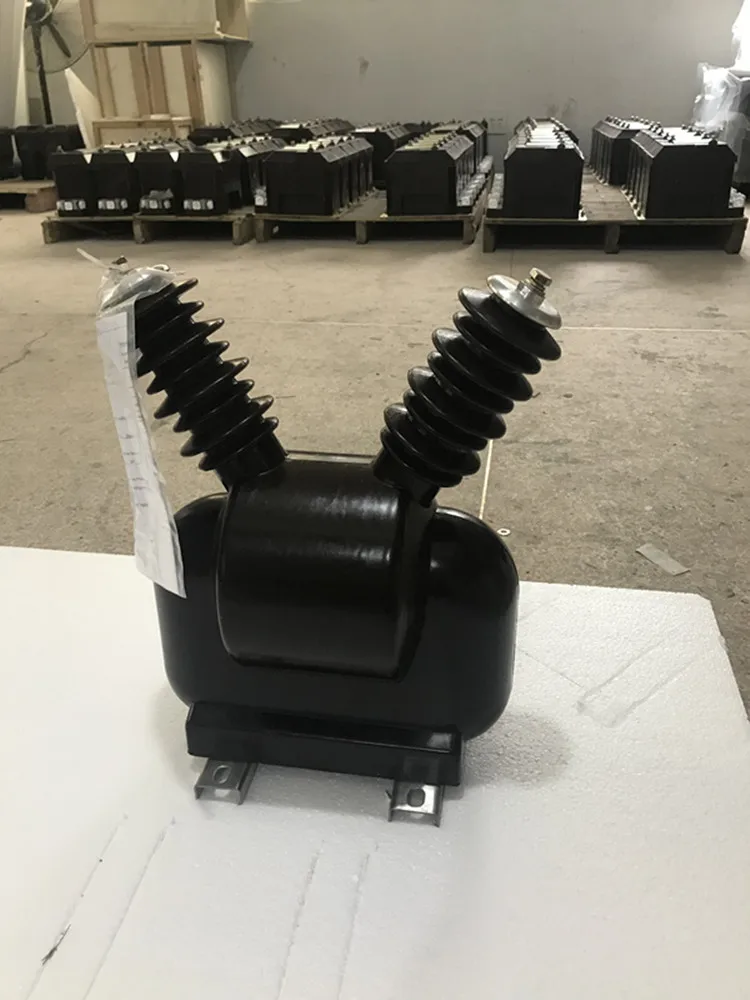

AISO Electric Supply Cost-effective Price JDZW-10(6)R Voltage Transformer

FOB Reference Price:Get Latest Price
  • 3 - 8 Pieces
    $245.00
  • 9 - 14 Pieces
    $240.00
  • >=15 Pieces
    $235.00
Lead Time:
Quantity(Pieces) 1 - 3 4 - 9 10 - 15 >15
Est. Time(days) 7 10 15 Negotiable
Customization:
Customized packaging (Min. Order: 3 Pieces)
Graphic customization (Min. Order: 3 Pieces)

More

Customized logo (Min. Order: 3 Pieces) Less
Samples:
$255.00 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AISO/OEM
Model Number:
JDZW-10(6)R
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
Autotransformer
Product:
10kv voltage transformer
Rated Voltage:
10kV
Burden:
50VA
Rated Frequency:
50/60Hz
Application:
low Voltage
Operating Temperature:
-30~40 ℃
Class:
3
Capacitor Certification:
ISO9001/IEC
Sample:
Accept
Port:
Ningbo/Shanghai
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month electric transformer voltage Transformer transformer price
Packaging & Delivery
Packaging Details
Normal export packing
Port
Ningbo or Shanghai
Lead Time :
Quantity(Pieces) 1 - 3 4 - 9 10 - 15 >15
Est. Time(days) 7 10 15 To be negotiated
Product Description

electric transformer  voltage Transformer  transformer price

Quick Reply     Professional Consultation           Continued Cooperation

LDZC-610 Series voltage transformer

 Summary

It is suitable for JDZW-10R fully enclosed in sulated voltage transformer(hereinafter referred to as transformer er). Transformer is outdoor device, it is built-in with fuse to be used in power system with rated frequency of 50Hz/60Hz and rated voltage of 10KV for electrical measurements, protection and power supply.

Working conditions
1.System grounding method
Neutral point non-effective grounding system
2.Standard

No.Name UnitParameter
1Ambient temperature(outdoor)Maximum temperature40
Minimum temperature-30
Maximum daily temperature differenceK30
2Altitudem≥1500
3Solar radiation intensityW/cm20.1
4Ice thickness mm10
5Wind speed and wind pressurem/sPa34/700
6Maximum wind speed(from the ground heigh 10M, to maintain the average maximum of 10minm/s35
7Humi dityAverage relative humidity%≤95
Average monthly relative humidty≤90
8Earthquake resistant capacityHorizontal accelerationg0.3
Ground vertical acceleration0.15
Safety factor/1.67
Technical parameters
TypeRated frequency(Hz)Rated voltage ratio (V)Accuracy classRated output(VA)Ultimate output(VA)Rated insulation leve(kV)
JDZW-6R50-606000/220350010007.2/32/60
JDZW-10R50-6010000/2203500100012/42/75
JDZW-6R50-60600/100/2200.5/330/50010007.2/32/60
JDZW-10R50-6010000/100/2200.5/330/500100012/42/75

Type designation

 Outline and installation dimension




Our Services

Our Services



1.We can make the products as different’s special require.



2.Flexible lead time



3.We can offer products at different prices



4.We have our own workflow (AISO process)



5.Any way, any time, your problems will be timely reply



FAQ



"Do you have a catalogue? Can you send me the catalogue to have a check of all your products?"

Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.



"Whether can produce as my require?"

"Yes,we can make the products as different’s special require."



"How long the product warranty?"

"Normally, the warranty for the product is 18 months , warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem."



"What kind of payment do you accept ? Can I pay RMB ?"

"We accept T/T(Wire transfer),Western Union and Paypal. And you can pay money In RMB. No problem."



"Any requirements or question,welcome to ""Send"" us an e-mail  Now!!!



It's our great honor to do services for you! "
