LW3-10 Outdoor High Voltage SF6 Circuit Breaker

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    $650.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AISO/OEM
Model Number:
LW3-10
Type:
High Voltage, sf6 gas circuit breaker
Poles Number:
3
Product:
High voltage circuit breaker
Product name:
LW3-10 SF6 Circuit Breaker
Rated Voltage:
10KV
Highest working voltage:
11.5KV
Rated current:
400-1250A
Rated frequency:
50Hz
Mechanical life:
6000Times
Customized:
Accept special order
Port:
Ningbo or Shanghai
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export wooden case packing
Port
Ningbo or Shanghai
Lead Time :
5Days
Product Description

 LW3-10 Outdoor High Voltage SF6 Circuit Breaker

Quick Reply     Professional Consultation           Continued Cooperation

SF6 gas is excellent insulating and arc-extinguishing medium, and it has best performance. Such equipment are the developing direction worldwide.
LW3-10 I II III type outdoor SF6 circuit breakers adopt SF6 gas as rec-extinguishing and insulating medium, which is applied to self-rotated arc extinguishing theory Operating mechanism is divided into I type hand charging spring operaring mechanism, II type motor charging spring operating mechanism and III type DC electromagnetic operating mechanism. All mechanism can cooperate with breaker body very well.

Main Technical Parameters
ItemDescriptionUnitData
1Rated voltageKV10
2Max. voltageKV11.5
3Rated insulation level(0.25Mpa, 20℃)lightning impact withstand voltagekv75
1min power frequency withstand voltage42
Raining withstand voltage34
Anti-phace impact withstand voltage85
4Insulation level(0Mpa.20℃)1 min power frequency withstand voltageKV30
1 min anb-phase withstand voltage30
5min maximum plase voltage9
5Rated currentA400   630
6Rated break current on shortingKA6.3   8   12.5
7Different phase to ground reclosing breaking currentKA5.5   7.1   10.9
8Breaking current on 0MpaA400   630
9Rated insulation levelI type OC-180S-CO-180S-CO
II,III type OC-0.3S-CO-180S-CO
10Rated making current(peak)KA162031.5
11Rated dynamic current(peak)KA162031.5
12Rated thermal stability currentKA6.3812.5
13Rated thermal stability timeS4
14Speed at instant of contacts touchingM/S2.6±0.2
15Speed at separating of contacts touchingM/S2.6±0.2
16Inherent closing timeII,III typeS≤0.06
17Inherent closing timeI typeS≤0.06
II,III type≤0.04
18Rated working pressureMpa0.35(20℃)
19Min working pressureMpa0.25(20℃)
20Rate of leaking in a year%<1
21Mechanical endurance operation(continuous)Times6000
22WeightI typeKg122
II type130
III type132
23The water content of SF6PPM≤150

Note:Please contact the factory to confirm the latest parameters

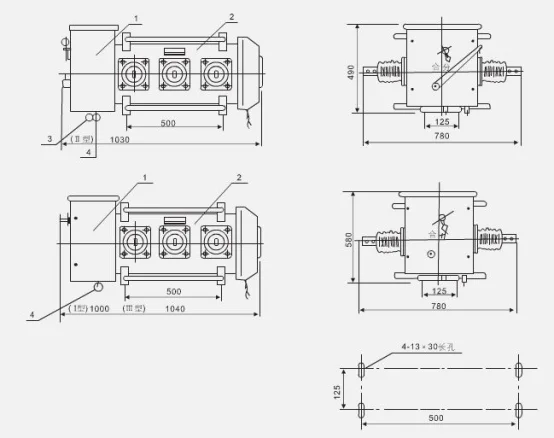

Outline and installation dimension
