LW8A-40.5 Outdoor High Voltage SF6 Circuit Breaker With Photo



Application

 Act as the protecting and controlling unit for grid equipments and industrial mining enterprises’ equipments,LW8-40.5 type outdoor SF6 circuit breaker is an outdoor device used in AC 50HZ three-phase 40.5KV power system. It is applicable to locations that need frequent operating in rated current or under repeatedly on/off short circuit current. Containing the current transformer for measurement and protection, it can directly replace SW2-35 less oil circuit breaker and various types of oil circuit breaker with transition bracket. It can also be used as a tie breaker and switching capacitor group situations with CT14 type spring mechanism.

Standards

GB1984

GB/T28001-2011 idt OHSAS18001:2007

GB/T24001-2004 idt ISO14001:2004

 Features

        Excellent breaking performance, short burning arc time, long life;

Mechanical life of more than 3000 times;

Operation frequently, each can be installed 12 current transformers;

New type SF6 MKZ pointer type density meter, pressure gauge reading is not affected by temperature changes;

 Environmental Condition

Ambient temperature:-30℃~+40℃

Altitude:≤3000m

Wind pressure:≤700Pa

Relative humidity:daily average relative humidity: ≤95%;monthly average relative humidity≤90;daily average saturated vapor pressure ≤2.2KPa;monthly average value   ≤1.8KPa

Air pollution level:Ⅲ

Earthquake intensity:≤8 degree

The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution

Main Technical Parameters
DescriptionUnitData
Rated voltageKV40.5
Rated insulation levelLightning impact withstand voltage(full wave peak)185/215(isolating break)
1min power frequency withstand voltage95
Rated currentA16002000
Meachanical lifeTimes3000
Rated SF6 gas pressure(at 20℃)Mpa0.45
Self-locking pressure(at 20℃)0.45
Lowest working ambient temperature-30
Rated short circuit breaking currentKA2531.5
Rated short circuit making current(peak)6380
Rated short withstand current(Thermal steady current)2531.5
Rated peak withstand current(dynamic steady current)6380
Rated out-of-phase breaking currentKA6380
Duration of rated short circuit currentS4
Closing time(at rated operating voltage)≤1
Opening time(at rated operating voltage)≤0.07
Rated operating sequence(O)-0.3S-(CO)-180S-(CO)
Rated breaking/making sigle capacitor currentA400
Nos of breaking rated short circuit breaking currenttimes1510
Yearly gas leakege%/years≤1
Water content in SF6(at 20℃)PPM(V)≤150
Rated voltage of assembied spring operating mechanismV-220
Voltage of closing coil, opening coilAC:220
DC:220
Voltage of charging motorVAC:220
DC:220
SF6 WeightKG8
Breaking weight including operating mechanism1400

Note:Please contact the factory to confirm the latest parameters

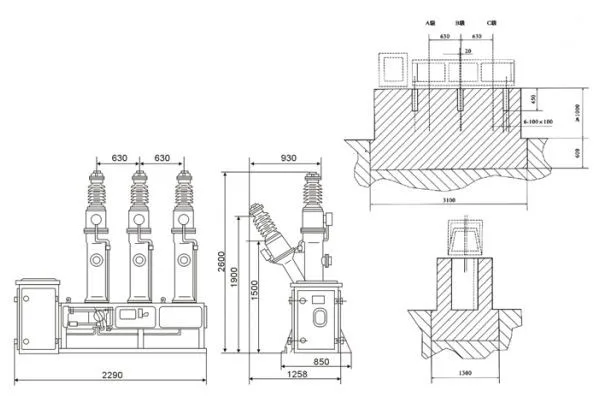

Outline And Installation Dimension

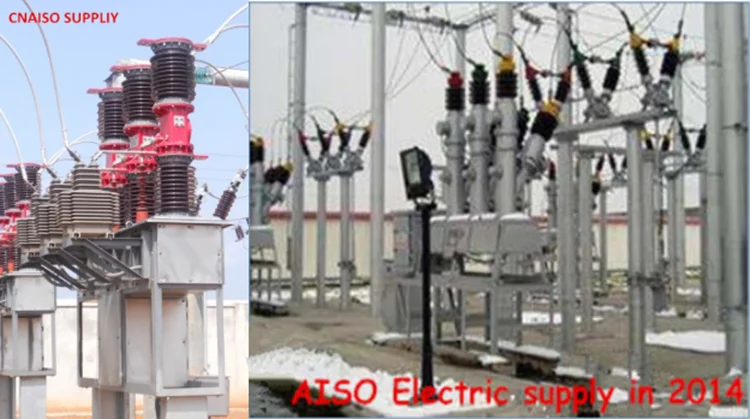

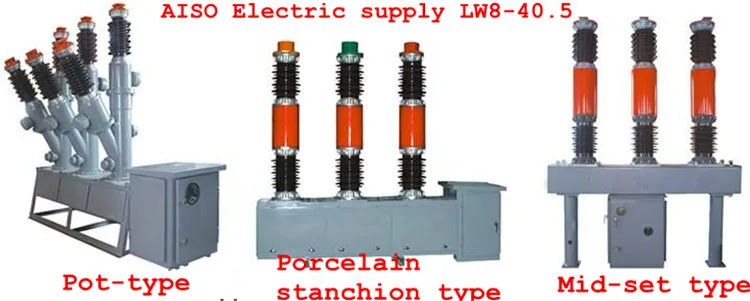

Product Pictures And Use
