24kV Outdoor High Voltage Vacuum Circuit Breaker With Factory Price

FOB Reference Price:Get Latest Price
  • 5 - 9 Pieces
    $1,420.00
  • >=10 Pieces
    $1,410.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM

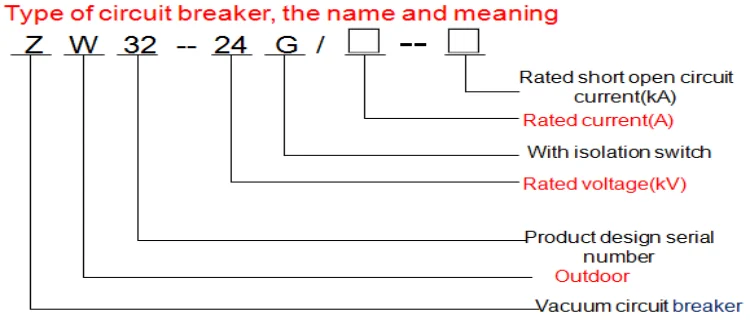

Model Number:
ZW32-24
Type:
High Voltage
Poles Number:
3
Product:
24kV Outdoor High Voltage Vacuum Circuit Breaker
Rated voltage:
24kV
Rated current:
630A,1250A
Rated frequency:
50Hz
Application:
High Voltage
Altitude:
≤2000m
Mechanical life:
10000times
Capacitor Certification:
IEC
Weight:
About80Kg
Processing customization:
Yes
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed in wooden cases
Port
Ningbo
Lead Time :
7Days
Product Description

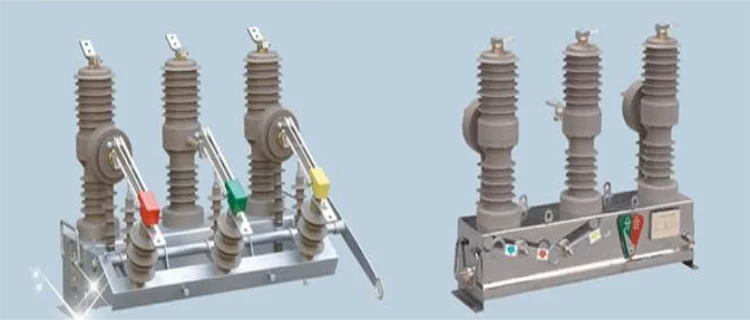

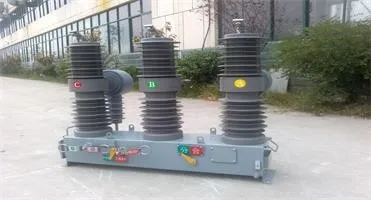

24kV Outdoor High Voltage Vacuum Circuit Breaker With Factory Price

ZW32-24 type of outdoor high voltage ac vacuum circuit breaker is three-phase ac frequency 50 Hz, the rated voltage is 24kV outdoor switch equipment, applicable to all kinds of different nature of the opening load and frequent operation situation, apply to city nets, rural, mining and power equipment such as railway construction and renovation.

Compared with the international similar products ,our product has miniaturization, free of maintenance, intelligent etc. Characteristics. At the same time this product to the surrounding environment free from contamination, is the green environmental protection products.

Environmental conditions

●Environmental temperature: no high than 40℃, no less than -40℃.
●Air relative humidity: day average no greater than 95%, on average less than 90%.
●The altitude does not exceed 2000m.
●Wind pressure not more than 700Pa(equivalent to wind speed 34m/s)
●Seismic intensity not more than eight level.
●No fire, explosion, serious filthy, chemical corrosion and violent vibration of places.

●If the customers have other special requirements, can be in order to put forward , our company can offer most satisfied.ne.

Features

●Stable and reliable, and has no combustion and explosion danger, safety, free of maintenance, small volume, light weight and long service life etc;
●Has the sealing, prevent condensation sex, anticorrosive, prevent salt mist sex of environment such as excellent performance;

●Unique design of the buffer device, excellent performance, the rally is small, low noise;

●Welding quality, stable and reliable, and a flat rate is low;

●Achieve precise current protection;
●Circuit breaker in the counter have action and is convenient for the user to maintain control products in the actual operation of The Times, make the maintenance staff to understand the product real date.

●According to the requirements of the customers, and the corresponding controller with automatic coincidence, stage is a device, which is the ideal equipment of automation distribution network.

Ordering of

>Product model, name and parameters;
>Circuit breaker operating mode: manual and electric power supply, power parameters;
>Current transformer, the number of parameters;
>Number and date of delivery;
>Spare parts, spare parts name, quantity.
