Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: AISO/OEM
  • Model Number: VS1-12/3150
  • Type: High Voltage
  • Poles Number: 3
  • Product: Oem circuit breaker
  • Product name: Types of breaker switches
  • Rated Voltage: 12KV
  • Rated current: 3150A
  • Rated frequency: 50Hz
  • Rated short circuit duration: 4S
  • Standard: ISO9001/Test Report
  • Mechanical life: 20000Times
  • Weight: About150KGS
  • Customized: Accept special order

Packaging & Delivery

Packaging Details Standard export wooden case packing
Delivery Time 5Days
Product Description

Wenzhou Factory OEM 12kv Wheeled Types Of Circuit Breaker Switches/VCB

Quick Reply     Professional Consultation           Continued Cooperation

VS1-12 type indoor high voltage vacuum circuit breaker, three-phase AC 50Hz, rated voltage for indoor switchgear 12KV power system, protection of power equipment enterprises. As a condition of power equipment and control unit. The frequent operation is suitable for requirements in the rated working current, or multiple breaking short circuit current.

Advantages

Simple structure

Adapt ultra low resistance type vacuum interrupter

Adapt optimization and modular spring operating mechanism

Suitable for occasions with frequent operation

Free maintenance and long service life

High reliable performance

Environmental Conditions

Ambient temperature:40 °C to +40 °C

Altitude: ≤ 1000m.

Relative humidity:≤  95%

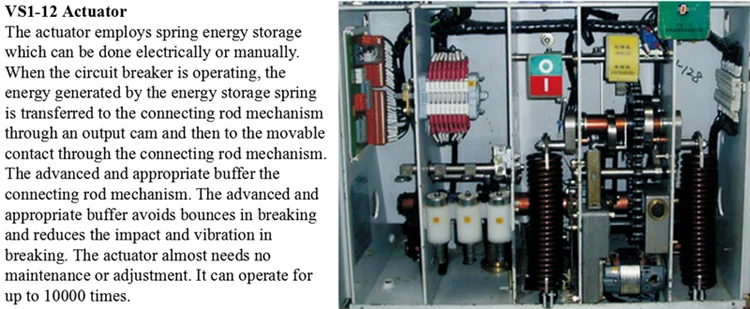

Structure and Function

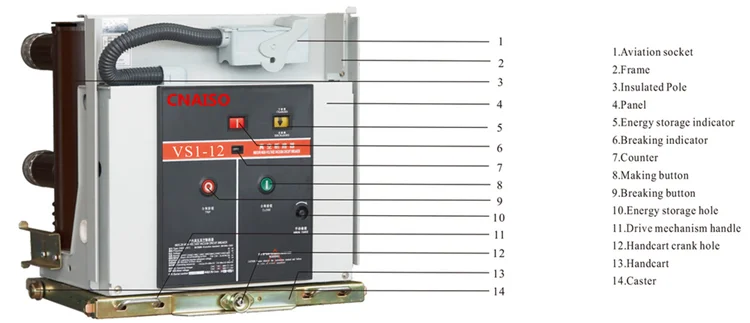

Structure
Main Technical Parameters
ItemDescriptionUnitData
1Rated voltageKV12
2Max. voltageKV12
3Rated currentA3150
4Rated break current on shortingKA31.5/40
5Rated short circuit making currentKA50/63/80/100/125
6Rated peak withstand currentKA50/63/80/100/125
74S Rated withstand currentKA31.5/40
8Rated insulation levelPower frequency voltage(when losing a circuit)KVDreaker 48
Impulse withstand voltage(when losing a circuit)Dreaker 84
9Rated operating sequence OC-0.3s-CO-180S-CO
10Mechanical lifeTimes10000
11Open circuit times of rated short dropout currentTimes50
12Rated close brake voltage of operating machnieV110,220
13Rated break brake voltage of operating machnieV110,220
14Clearance between open contactsmm11±1
15Exceed range(the compress length of contact sping)mm4±0.5
16Different period of three-phase break and close breakms≤2
17The jump time of contact close breakms≤2
18Average break speedm/s0.9~1.2
19Average closing speedm/s0.6~1.2
20Closing times≤0.1
21Resistance of each phase main loopμΩ≤40
22Contacts limit ersionmm3

Note:Please contact the factory to confirm the latest parameters



Outline and installation dimension



Rated current(A)3150
Rated short-time withstand current(kA)31.5,40
Fixed contact size D(mm)Φ109
Interphase distance(mm)275±1.5
Drive travel(mm)200±2
